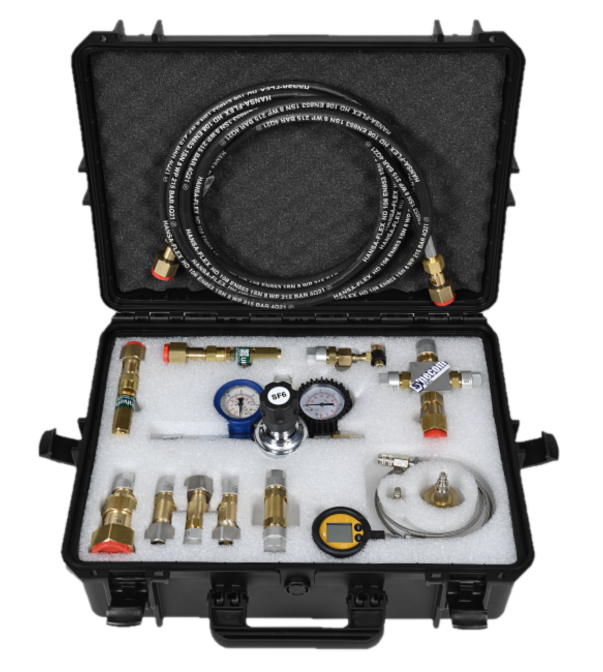

SF6 Refilling Kits

Available in 5 different version to meet all equipments’ need:

REF101-01 SF6 Refilling Kit Low
REF101-02 SF6 Refilling Kit Classic
REF101-03 SF6 Refilling Kit Medium
REF101-04 SF6 Refilling Kit Standard
REF101-05 SF6 Refilling Kit Full

Request info
Features and Benefits

Features and Benefits

  • 01

    Ideal for: Refilling the equipment directly from an high-pressure cylinder

  • 02

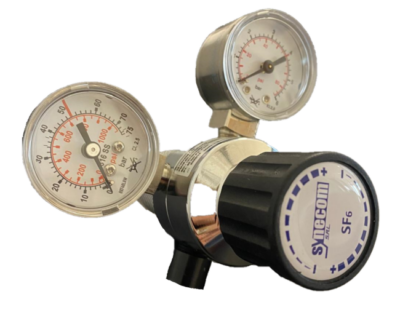

    The SF6 pressure in the compartment can be easily adjusted using the knob on the pressure reducer

  • 03

    The analog manometer at the inlet of the pressure reducer indicates the pressure in bar contained in the cylinder; the analog/ digital manometer at the outlet of the pressure reducer indicates the refilling pressure of the equipment

Technical specifications

• Analog manometer 0 ÷ 60 bar at pressure reducer inlet (high pressure)
• Analog manometer 0 ÷ 12 bar at pressure reducer outlet (low pressure) 1
• Digital manometer 0 ÷ 11 bar abs 2
• Cylinder connection SF6 W 21.8 x 1/14”
• Rubber hose 5 m DN8 with molecular seal connection valves DN8

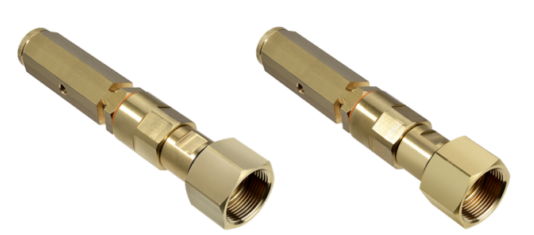

• Safety valve set at 5 bar installed on molecular seal connection valve DN8 3
• Safety valve set at 8 bar installed on molecular seal connection valve DN8 3
• Molecular Seal Valve Adapter DN20/DN8
• 4-way distributor with molecularly sealed connection valves DN8 3
• Magrini adapter Ø14 with molecular seal connection valve DN8 4
• Magrini adapter Ø16 with molecular seal connection valve DN8 4
• ASEA Adapter with DN8 Molecular Seal Connecting Valve 4

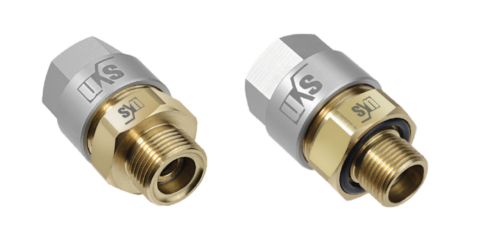

• Connection valve adapter DN8 male – connection valve DN8 male 5
• Michelin adapter with molecular seal connection valve DN8 4

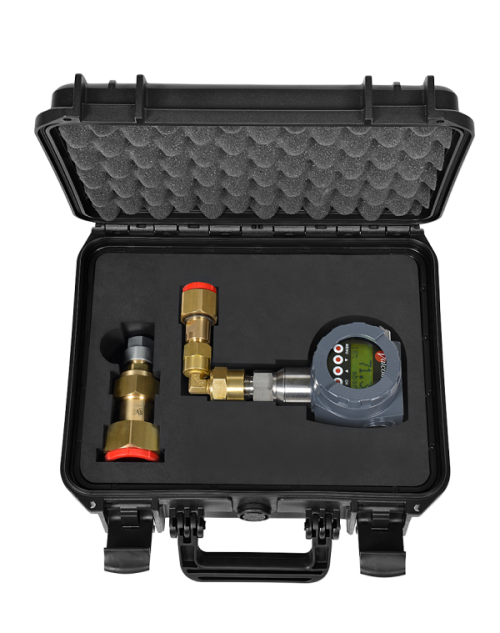

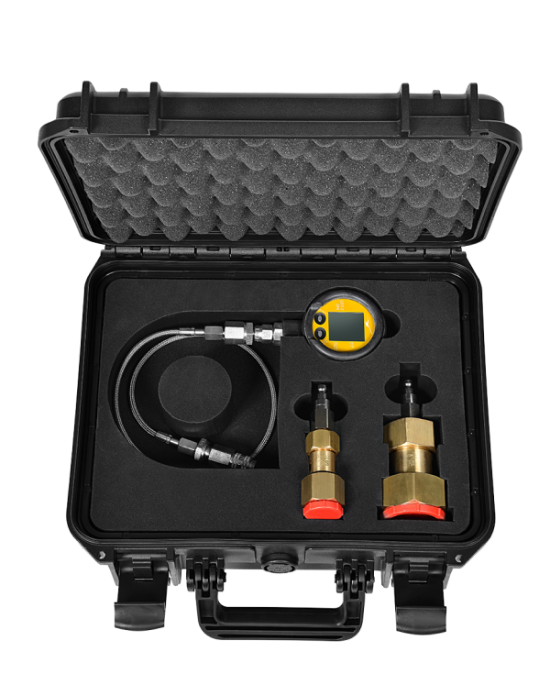

• Digital pressure gauge kit (with DN8 and DN20 quick coupler adapters) 5

1Refilling Kit Low, Refilling Kit Classic, Refilling Kit Full
2Refilling Kit Medium, Refilling Kit Standard
3Refilling Kit Classic, Refilling Kit Medium, Refilling Kit Standard, Refilling Kit Full
4Refilling Kit Standard, Refilling Kit Full
5Refilling Kit Full

  • Lenght

    REF101-01 REF101-02 REF101-03: 460mm
    REF101-01 REF101-04 REF101-05: 555mm

  • Width

    REF101-01 REF101-02 REF101-03: 360mm
    REF101-01 REF101-04 REF101-05: 428mm

  • Height

    REF101-01 REF101-02 REF101-03: 180mm
    REF101-01 REF101-04 REF101-05: 211mm

  • Weight

    REF101-01 REF101-02 REF101-03: 9 ÷ 12mm
    REF101-01 REF101-04 REF101-05: 15mm

Other products

They might interest you

Products SF6

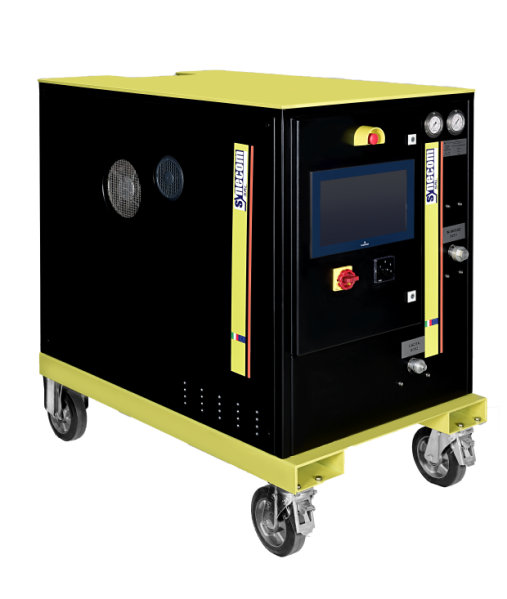

Easy

Details

Products SF6

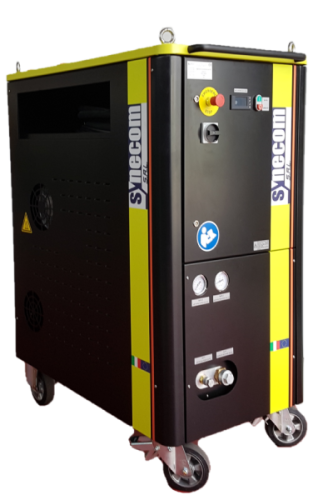

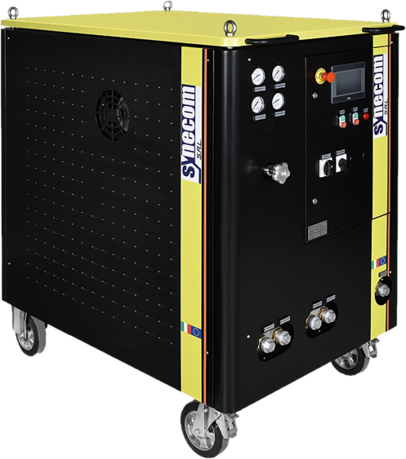

Synergic

Details

Products SF6

Basic

Details

Products SF6

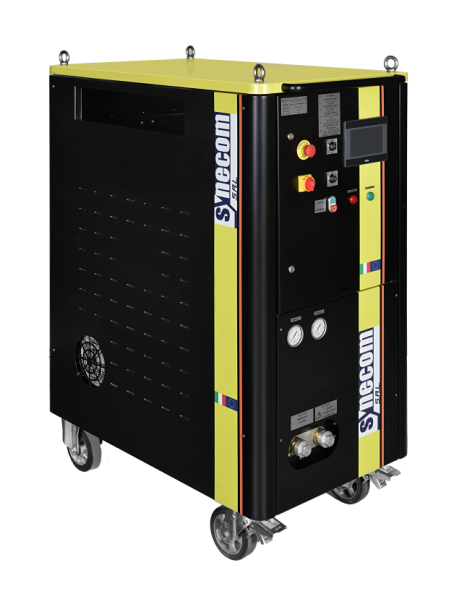

Active

Details

Air Evacuation

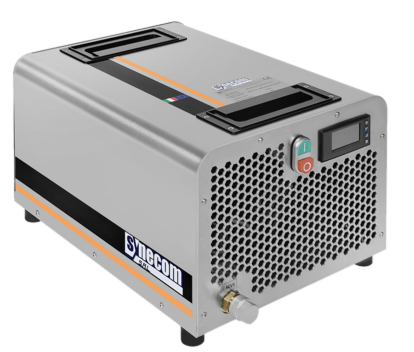

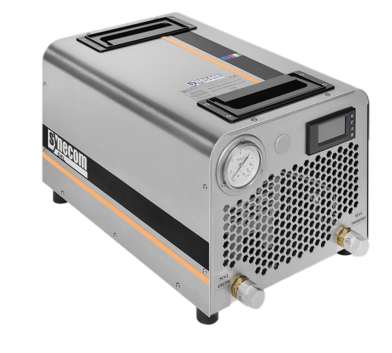

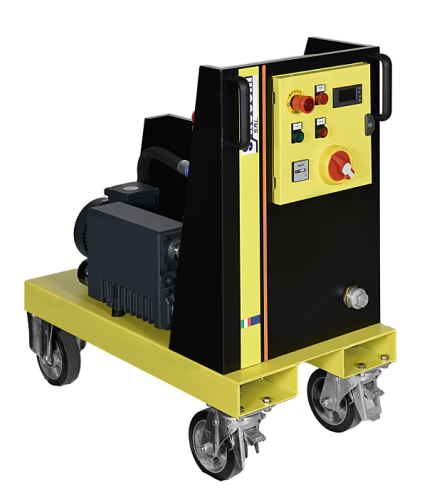

Vacuum Pump

Details

Accessories

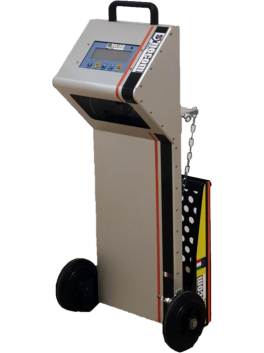

Scales

Details

Products SF6

Flow V0

Details

Products SF6

Flow V1

Details

Products SF6

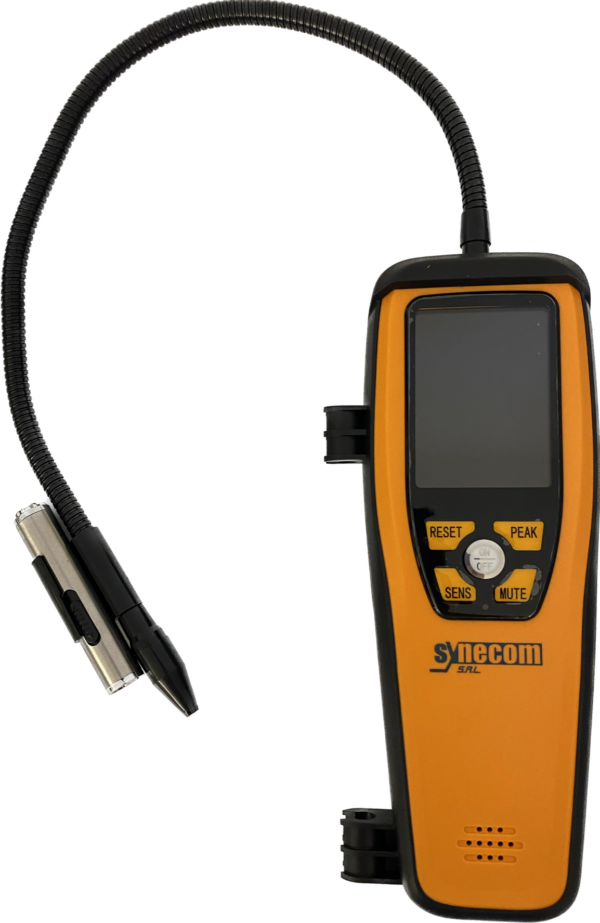

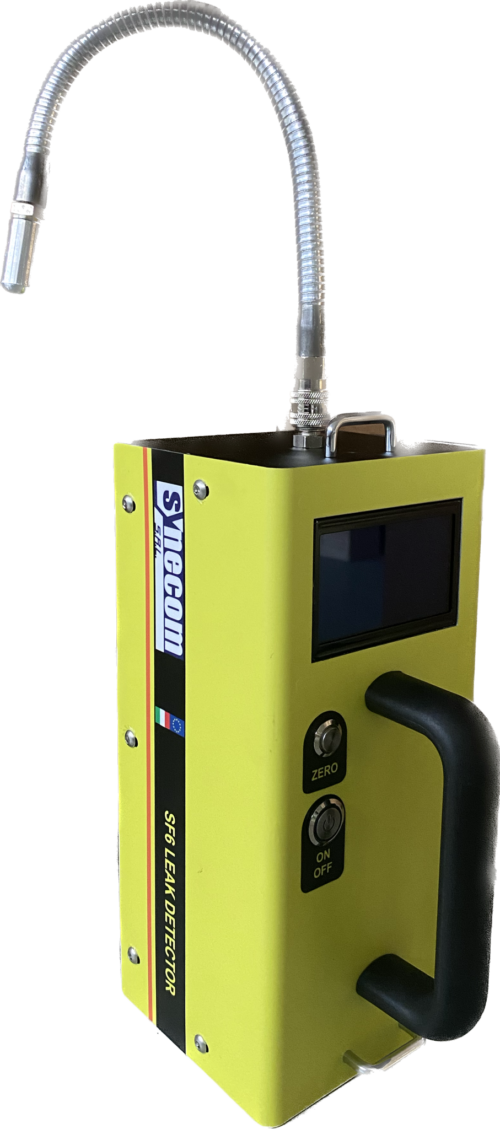

Sniffer SF6

Details

Products SF6

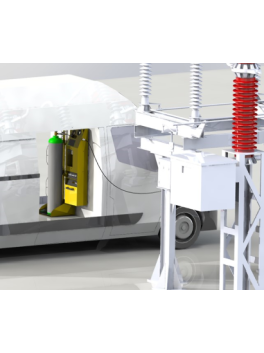

ESAVan

Details

Adapters, Tubes, Valves

4m Long Hose for Analysis

Details

Adapters, Tubes, Valves

Storage hose connection DN8

Details

Adapters, Tubes, Valves

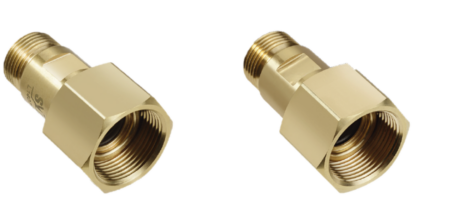

Cylinder connections

Details

Adapters, Tubes, Valves

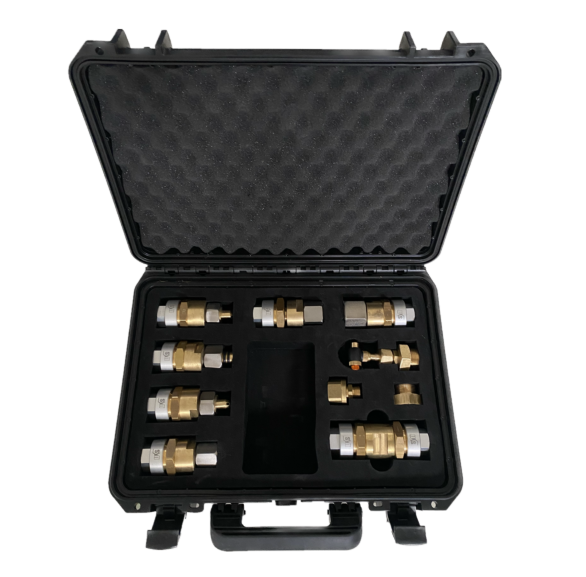

DN20 Adapter Set

Details

Adapters, Tubes, Valves

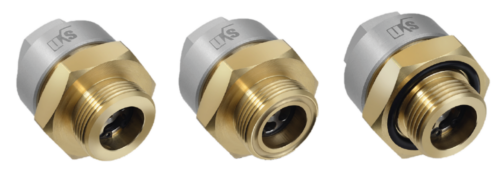

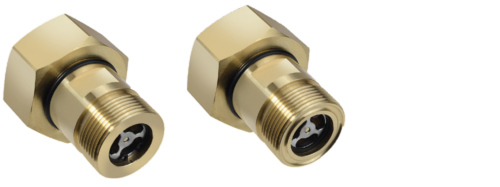

Adapters and Valves
DN8/DN20

Details

Adapters, Tubes, Valves

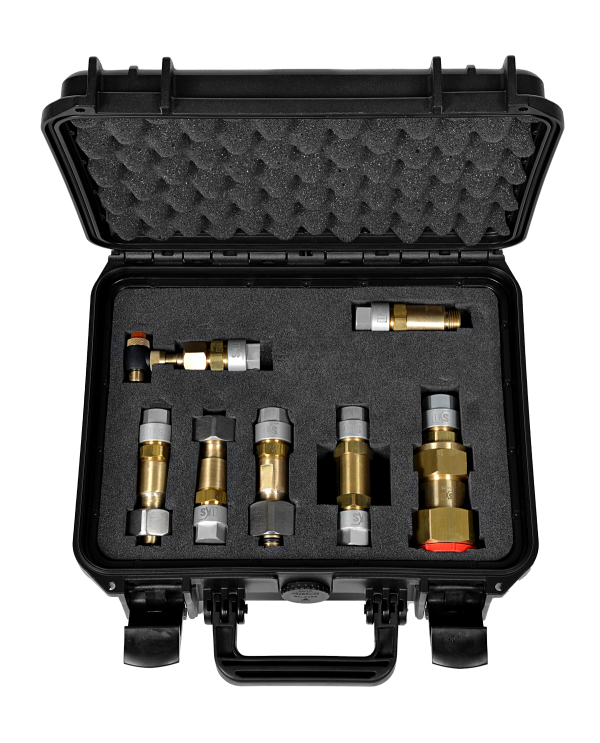

DN8 Adapter Set

Details

Adapters, Tubes, Valves

DN8 rubber hoses

Details

Adapters, Tubes, Valves

DN20 rubber hoses

Details

Adapters, Tubes, Valves

Stainless steel pipes

Details

Adapters, Tubes, Valves

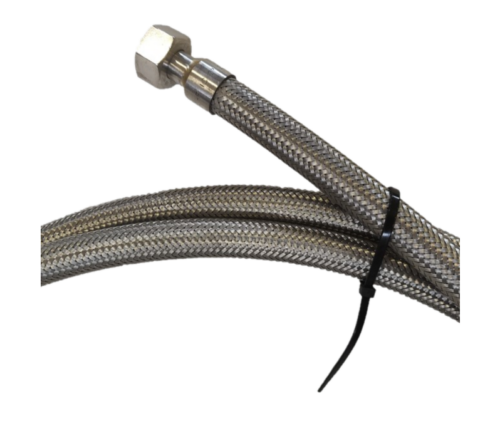

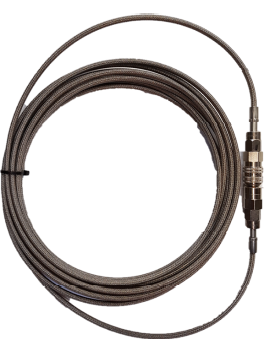

Wire braided hoses

Details

Adapters, Tubes, Valves

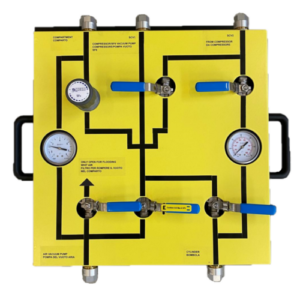

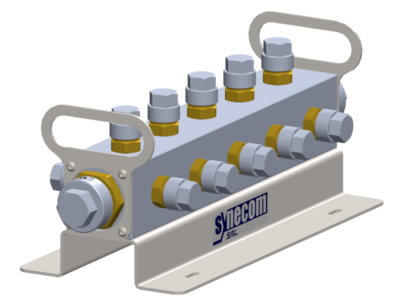

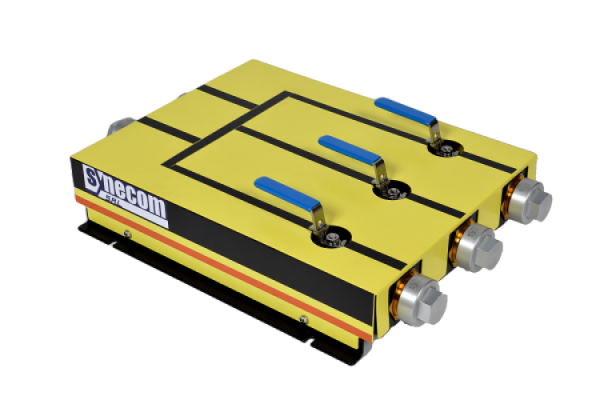

Manifold
4xDN20 + 1xDN8

Details

Products SF6

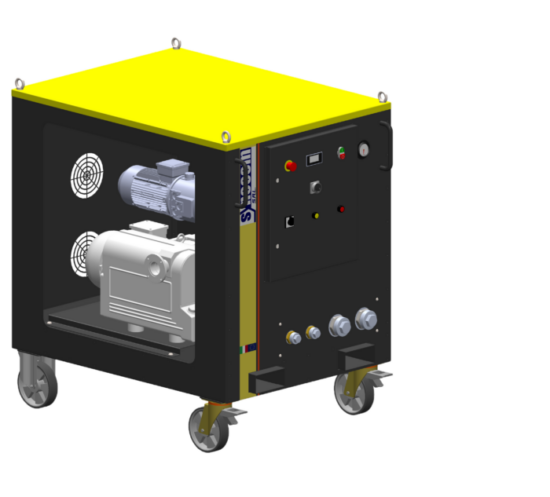

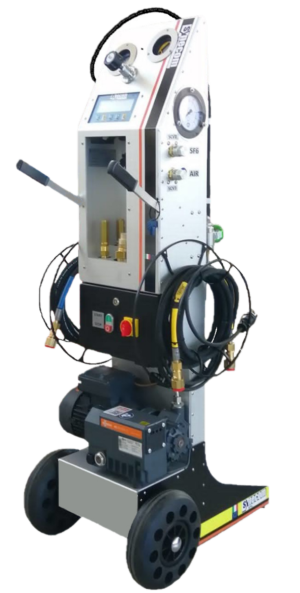

VacuumFlow

Details

Adapters, Tubes, Valves

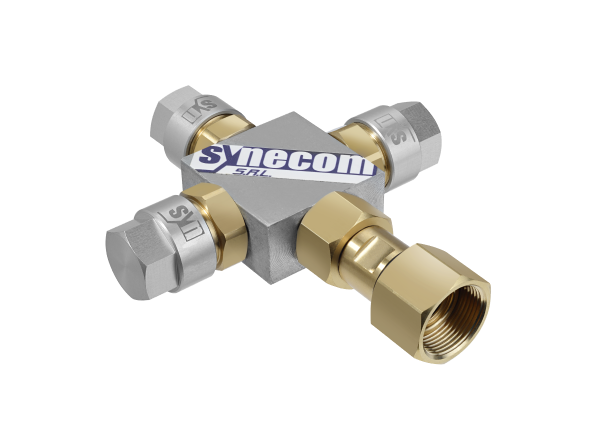

4-Way Distributor
