VacuumFlow

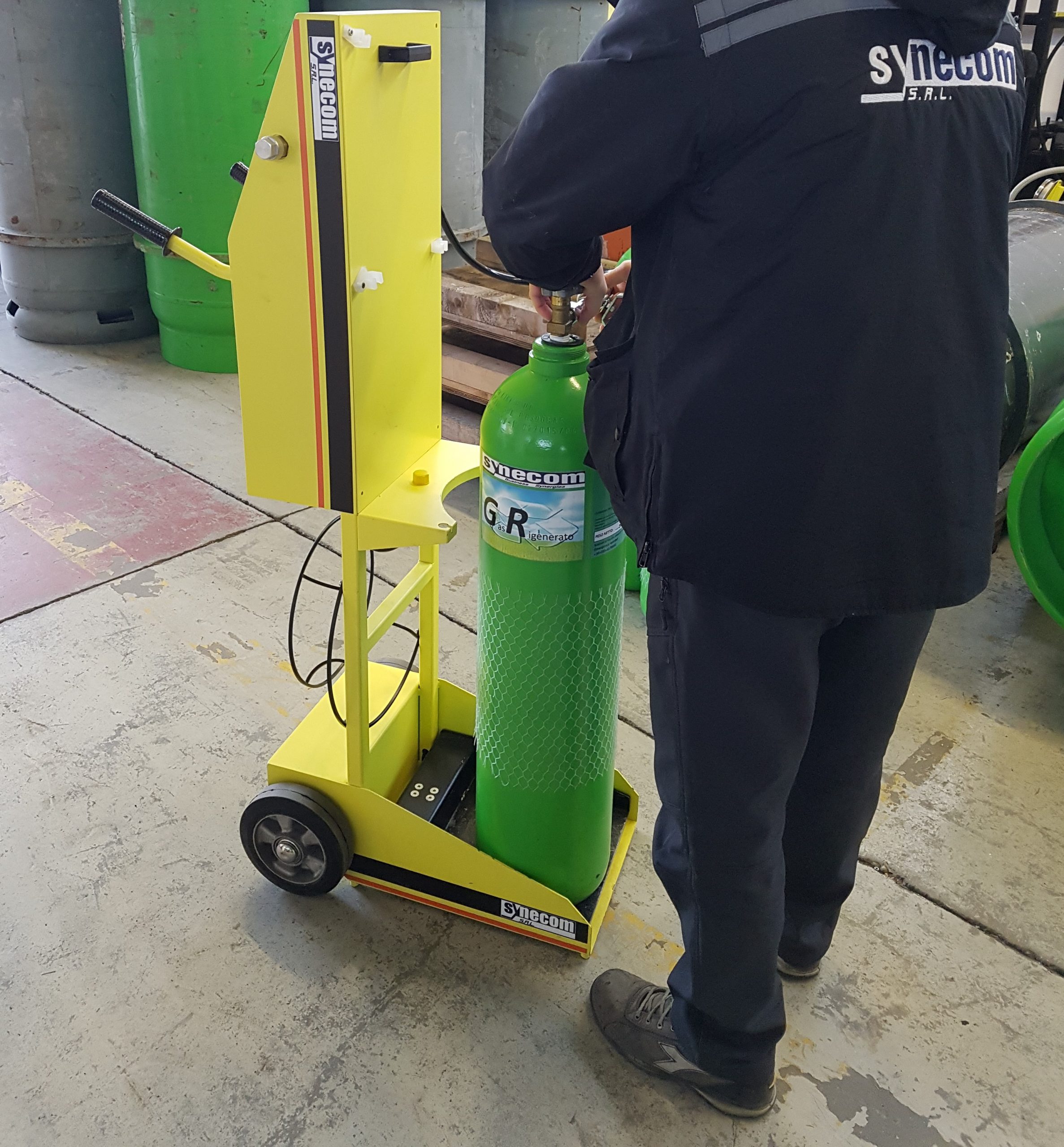

VacuumFlow, or SF6 Filling and Weighing Unit with air evacuation, is the ideal equipment for filling SF6 gas in total safety for the Operator, the environment and the equipment intended to contain the gas.
The pressure reducer ensures the regulation of the outlet gas pressure.
The device is equipped with an analog inlet pressure gauge that monitors the gas pressure in the cylinder and a digital outlet pressure gauge, temperature compensated, that monitors the gas pressure at the inlet of the compartment.
VacuumFlow is equipped with a scale and a digital display to check the quantity of gas transferred.

COD. REF102-04

Request info
Features and benefits

Features and benefits

  • 01

    Adjustment of the outlet gas pressure

  • 02

    Scale with digital display

  • 03

    Air expulsion with pressure values < 1 mbar

  • 04

    Safety valves set at 5 and 8 bar

Technical specifications

VacuumFlow makes it possible to expel air from a compartment by reaching pressure values < 1 mbar.

Thanks to the clear separation between the filling circuit and the vacuum air circuit, it is possible to avoid contamination between SF6 gas and air.

  • Dimensions

    L 730 mm, W 540 mm, H 1485 mm

  • Weight

    68 kg

  • Air vacuum pump

    16 m3/h

  • Achievable final pressure

    0,5 mbar

  • Analogical pressure gauge at input

    0 – 60 bar

  • Digital precision pressure gauge at outlet

    0 – 11 bar abs

  • Weighing Range

    130 kg / accuracy: ±10 g

  • Safety valves

    Set at 5 and 8 bar o on request

  • Operating voltage

    220 – 240 V / 50 – 60 Hz
