Easy
SF6 Service Cart EASY by Synecom is a mobile unit that allows SF6 gas handling. The SF6 Service Cart EASY is characterized by a simple and compact design. The control of the operations carried out is completely automated and easy to use.
COD. CAR103-01
Features and benefits
Features and benefits
-
01
SF6 gas recovery from compartments
-
02
Air evacuation from compartments
-
03
Filling of compartment with SF6 gas from cylinder
-
04

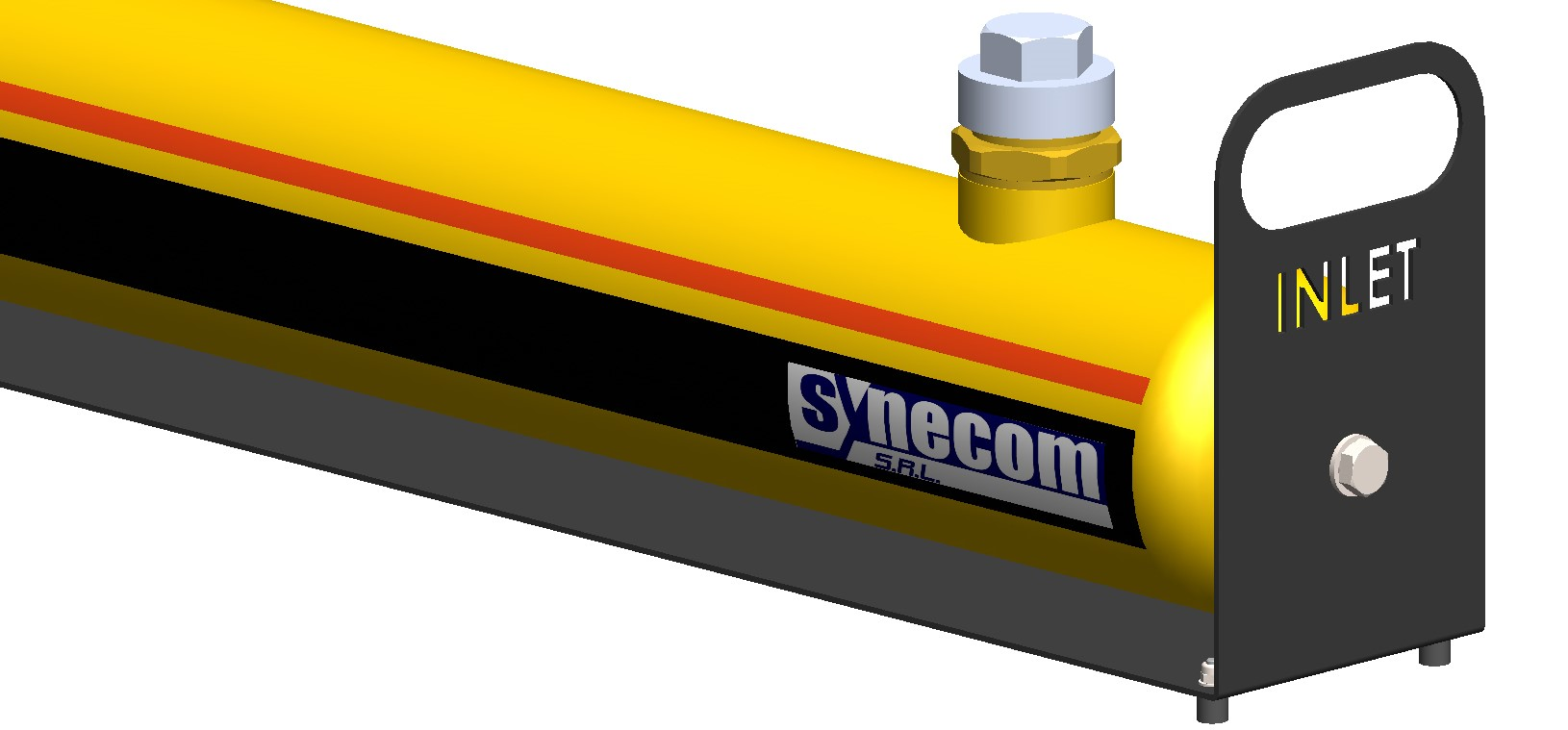

Filtration and reduction of humidity and particulate matter of SF6 gas
-
05
Automated circuit pressure reduction/restoration procedure
-
06
Automated cylinder heating
-
07
Weighing of recovered and injected gas
-
08
Reports generation (humidity, temperature and pressure)
-
09
Remotely controllable
Technical specifications
In order to comply with current transport regulations, the SF6 Service Cart EASY can empty itself completely and automatically, guaranteeing an internal pressure of less than 0.5 bar, so as to allow transport in total safety.
-
Dimensions
L 1300 mm, W 800 mm, H 1300 mm
-
Weight
600 kg
-
Power supply
380 – 420 V / 50 Hz three-phase 5P
-
Air vacuum pump – Final pressure
< 1 mbar
-
Air Vacuum Pump – Nominal Flow Rate
40 Nm3/h
-
SF6 Dry Gas Vacuum Pump – Final Pressure
< 1 mbar
-
SF6 dry gas vacuum pump – Nominal flow rate
15 Nm3/h
-
SF6 dry compressor – Nominal flow rate
13,5 Nm3/h
Download
Download technical sheet
