Synergic
Available in multiple versions to meet all equipment size needs:
CAR106-04 Synergic Classic + Vacuum 40

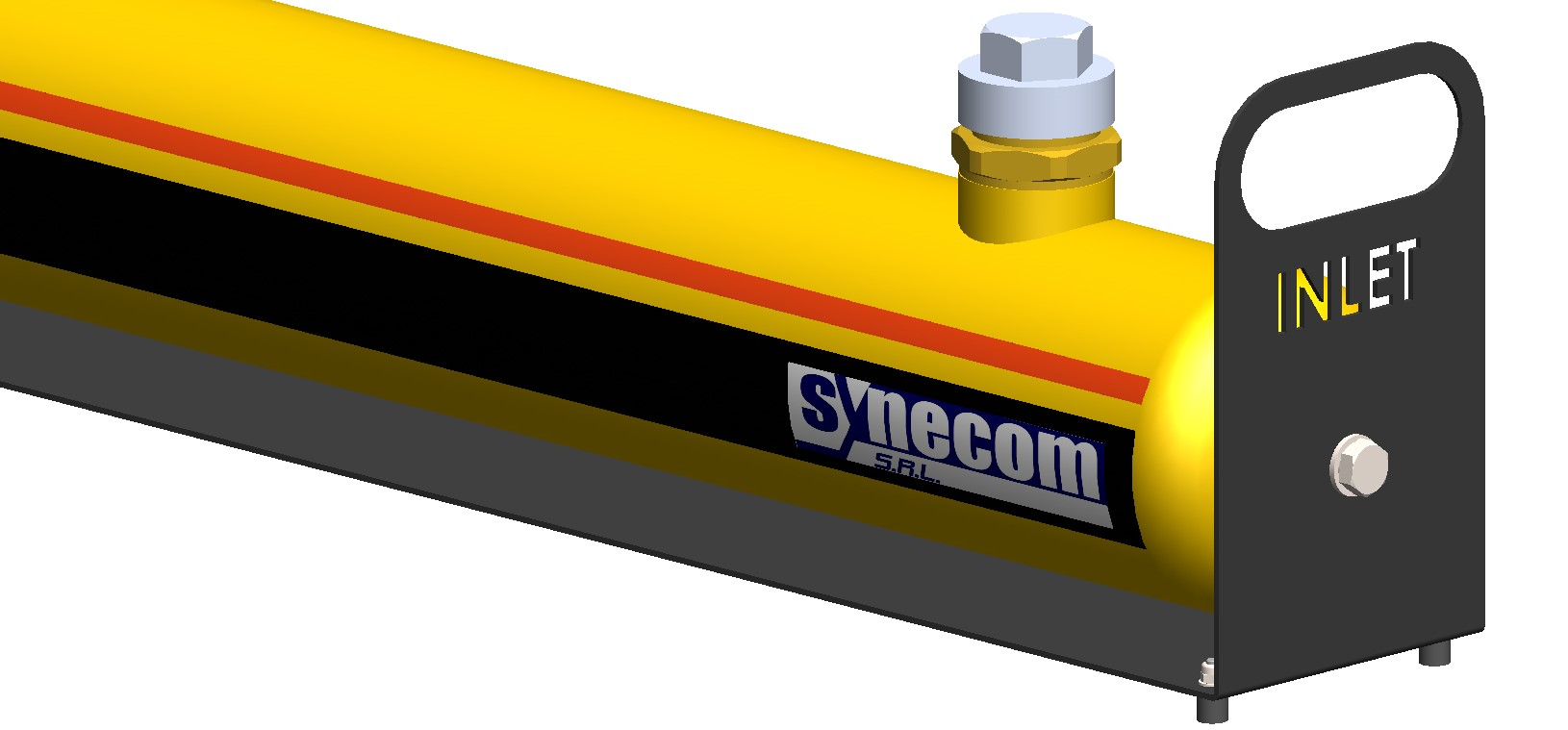

CAR106-04-S Synergic Classic + Vacuum 40 + Storage 300L
CAR106-03 Synergic Classic + Vacuum 60
CAR106-03-S Synergic Classic + Vacuum 60 + Storage 300L
CAR106-02 Synergic Classic + Vacuum 100
CAR106-02-S Synergic Classic + Vacuum 100 + Storage 300L
CAR106-01 Synergic Classic + Vacuum 200
CAR106-01-S Synergic Classic + Vacuum 200 + Storage 300L
CAR105-04 Synergic High Performance + Vacuum 40
CAR105-04-S Synergic High Performance + Vacuum 40 + Storage 300L
CAR105-03 Synergic High Performance + Vacuum 60
CAR105-03-S Synergic High Performance + Vacuum 60 + Storage 300L
CAR105-02 Synergic High Performance + Vacuum 100
CAR105-02-S Synergic High Performance + Vacuum 100 + Storage 300L
CAR105-01 Synergic High Performance + Vacuum 200
CAR105-01-S Synergic High Performance + Vacuum 200 + Storage 300L
Features and benefits
Features and benefits
-
01
Ideal for: Big volumes GIS and Particles accelerators
-
02
4 functions in one cart: Air Vacuum, Recovery and Refill of SF6 gas and Filtering also simultaneously
-
03
Recycling in autonomy: the integrated filter allows the reduction of humidity levels and the elimination of gases resulting from the decomposition of SF6
-
04
All connections are molecular sealed
-
05
Compact design + Intuitive interface, easy to use
-
06
Storage version: Automatic functioning via 10’’ touch-screen, smartphone and tablet remote control
Technical specifications
• SF6 gas Recovery and Storage in cylinder in liquid state up to a pression of 50bar. Final attainable absolute pressure in compartment < 1 mbar abs (in compliance with CEI EN62271-4*)
• Storage version: SF6 gas Recovery and Storage in the connected tank in a liquid state up to a pression of 50bar. Final attainable absolute pressure < 1 mbar abs (in compliance with CEI EN62271-4*)
• Air Evacuation Final attainable absolute pressure in compartment < 1 mbar abs
• SF6 gas Refilling at adjustable pressure from a cylinder
• Storage version: SF6 gas Refilling at adjustable pressure directly from the connected tank
• SF6 gas Filtration and moisture abatement both in Recovery and Refilling phase
• SF6 gas Filtration and particulate abatement both in Recovery and Refilling phase
• Measurement of humidity of recovered and released gas
* the standard CEI EN62271-4 requires the achievement of 5 mbar abs
-
Dimensions
Lenght: 1420 mm
Width: 995 mm – Height: 1595 mm -
Storage version dimensions
Lenght: 2120 mm
Width: 1290 mm – Height: 1845 mm -
Weight
550 kg
-
Storage version weight
1500 kg
-
Power supply
400 V – 50 / 60 Hz three-phase
-
SF6 Dry compressor
CAR106-XX: Discharge Pressure 50bar
Nominal Flow Rate 13,2 Nm3/h
CAR105-XX: Discharge Pressure 50bar
Nominal Flow Rate 22,3 Nm3/h -
SF6 Dry Vacuum Pump
CAR106-XX: Final attainable Pressure <1 mbar
Nominal Flow Rate 18 Nm3/h
CAR105-XX: Final attainable Pressure <1 mbar
Nominal Flow Rate 35 Nm3/h -
Air Vacuum Pump
CARXXX-04: Final attainable Pressure <1 mbar
Nominal Flow Rate 40 Nm3/h
CARXXX-03: Final attainable Pressure <1 mbar
Nominal Flow Rate 60 Nm3/h
CARXXX-02: Final attainable Pressure <1 mbar
Nominal Flow Rate 100 Nm3/h
CARXXX-01: Final attainable Pressure <1 mbar
Nominal Flow Rate 200 Nm3/h
